TK Wire Threaded inserts
过去 15 小时内售出 15 件产品
销售火爆！已有超过 9 人将商品加入购物车
现在有 28 人正在浏览此页面
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
| Model | Product Page Title | Thread Size & Designation | Nominal Length xD |
Length x mm |
Free Outer Diameter Min. |
Free Outer Diameter Max. |
Number of Free Coils2 | Thread Type | Material | KATO CoilThread No. | MA/MS No. | Heli-Coil No. | Recoil Part No. | Recoil MA Part Number |
Part Number |
| Helicoil Wire Threaded-insert M2X0.4-1D | Helicoil Wire Threaded-insert Tanged M2X0.4-1D | M2X0.4 | 1 | 2.0 | 2.50 | 2.70 | 3-1/4 | Metric Coarse | Stainless Steel 304 | TNM-2X.4C-2 | MA3279-140 | 1084-2CN020 | 05022 | MA3279-140 | |
| Helicoil Wire Threaded-insert M2X0.4-1.5D | Helicoil Wire Threaded-insert Tanged M2X0.4-1.5D | M2X0.4 | 1.5 | 3.0 | 2.50 | 2.70 | 5-1/2 | Metric Coarse | Stainless Steel 304 | TNM-2X.4C-3 | MA3279-190 | 1084-2CN030 | 05023 | MA3279-190 | |
| Helicoil Wire Threaded-insert M2X0.4-2D | Helicoil Wire Threaded-insert Tanged M2X0.4-2D | M2X0.4 | 2 | 4.0 | 2.50 | 2.70 | 7-3/4 | Metric Coarse | Stainless Steel 304 | TNM-2X.4C-4 | MA3279-240 | 1084-2CN040 | 05024 | MA3279-240 | |
| Helicoil Wire Threaded-insert M2X0.4-2.5D | Helicoil Wire Threaded-insert Tanged M2X0.4-2.5D | M2X0.4 | 2.5 | 5.0 | 2.50 | 2.70 | 10-1/8 | Metric Coarse | Stainless Steel 304 | TNM-2X.4C-5 | MA3279-290 | 1084-2CN050 | 05025 | MA3279-290 | |
| Helicoil Wire Threaded-insert M2X0.4-3D | Helicoil Wire Threaded-insert Tanged M2X0.4-3D | M2X0.4 | 3 | 6.0 | 2.50 | 2.70 | 12-3/8 | Metric Coarse | Stainless Steel 304 | TNM-2X.4C-6 | MA3279-340 | 1084-2CN060 | 05026 | MA3279-340 | |
| Helicoil Wire Threaded-insert M2.2X0.45-1D | Helicoil Wire Threaded-insert Tanged M2.2X0.45-1D | M2.2X0.45 | 1 | 2.2 | 2.80 | 3.00 | 3-1/8 | Metric Coarse | Stainless Steel 304 | TNM-2.2X.45C-2.2 | MA3279-100 | 1084-2.2CN022 | 05012 | 05012MA | MA3279-100 |
| Helicoil Wire Threaded-insert M2.2X0.45-1.5D | Helicoil Wire Threaded-insert Tanged M2.2X0.45-1.5D | M2.2X0.45 | 1.5 | 3.3 | 2.80 | 3.00 | 5-3/8 | Metric Coarse | Stainless Steel 304 | TNM-2.2X.45C-3.3 | MA3279-150 | 1084-2.2CN033 | 05013 | 05013MA | MA3279-150 |
| Helicoil Wire Threaded-insert M2.2X0.45-2D | Helicoil Wire Threaded-insert Tanged M2.2X0.45-2D | M2.2X0.45 | 2 | 4.4 | 2.80 | 3.00 | 7-5/8 | Metric Coarse | Stainless Steel 304 | TNM-2.2X.45C-4.4 | MA3279-200 | 1084-2.2CN044 | 05014 | 05014MA | MA3279-200 |
| Helicoil Wire Threaded-insert M2.2X0.45-2.5D | Helicoil Wire Threaded-insert Tanged M2.2X0.45-2.5D | M2.2X0.45 | 2.5 | 5.5 | 2.80 | 3.00 | 9-7/8 | Metric Coarse | Stainless Steel 304 | TNM-2.2X.45C-5.5 | MA3279-250 | 1084-2.2CN055 | 05015 | 05015MA | MA3279-250 |
| Helicoil Wire Threaded-insert M2.2X0.45-3D | Helicoil Wire Threaded-insert Tanged M2.2X0.45-3D | M2.2X0.45 | 3 | 6.6 | 2.80 | 3.00 | 12-1/8 | Metric Coarse | Stainless Steel 304 | TNM-2.2X.45C-6.6 | MA3279-300 | 1084-2.2CN066 | 05016 | 05016MA | MA3279-300 |
| Helicoil Wire Threaded-insert M2.5X0.45-1D | Helicoil Wire Threaded-insert Tanged M2.5X0.45-1D | M2.5X0.45 | 1 | 2.5 | 3.20 | 3.70 | 3-3/8 | Metric Coarse | Stainless Steel 304 | TNM-2.5X.45C-2.5 | MA3279-101 | 1084-2.5CN025 | 05252 | 05252MA | MA3279-101 |
| Helicoil Wire Threaded-insert M2.5X0.45-1.5D | Helicoil Wire Threaded-insert Tanged M2.5X0.45-1.5D | M2.5X0.45 | 1.5 | 3.8 | 3.20 | 3.70 | 5-3/4 | Metric Coarse | Stainless Steel 304 | TNM-2.5X.45C-3.8 | MA3279-151 | 1084-2.5CN038 | 05253 | 05253MA | MA3279-151 |
| Helicoil Wire Threaded-insert M2.5X0.45-2D | Helicoil Wire Threaded-insert Tanged M2.5X0.45-2D | M2.5X0.45 | 2 | 5.0 | 3.20 | 3.70 | 8-1/8 | Metric Coarse | Stainless Steel 304 | TNM-2.5X.45C-5 | MA3279-201 | 1084-2.5CN050 | 05254 | 05254MA | MA3279-201 |
| Helicoil Wire Threaded-insert M2.5X0.45-2.5D | Helicoil Wire Threaded-insert Tanged M2.5X0.45-2.5D | M2.5X0.45 | 2.5 | 6.3 | 3.20 | 3.70 | 10-1/2 | Metric Coarse | Stainless Steel 304 | TNM-2.5X.45C-6.3 | MA3279-251 | 1084-2.5CN063 | 05255 | 05255MA | MA3279-251 |
| Helicoil Wire Threaded-insert M2.5X0.45-3D | Helicoil Wire Threaded-insert Tanged M2.5X0.45-3D | M2.5X0.45 | 3 | 7.5 | 3.20 | 3.70 | 12-3/4 | Metric Coarse | Stainless Steel 304 | TNM-2.5X.45C-7.5 | MA3279-301 | 1084-2.5CN075 | 05256 | 05256MA | MA3279-301 |
| Helicoil Wire Threaded-insert M3X0.5-1D | Helicoil Wire Threaded-insert Tanged M3X0.5-1D | M3X0.5 | 1 | 3.0 | 3.80 | 4.35 | 3-3/4 | Metric Coarse | Stainless Steel 304 | TNM-3X.5C-3 | MA3279-102 | 1084-3CN030 | 05032 | 05032MA | MA3279-102 |
| Helicoil Wire Threaded-insert M3X0.5-1.5D | Helicoil Wire Threaded-insert Tanged M3X0.5-1.5D | M3X0.5 | 1.5 | 4.5 | 3.80 | 4.35 | 6-3/8 | Metric Coarse | Stainless Steel 304 | TNM-3X.5C-4.5 | MA3279-152 | 1084-3CN045 | 05033 | 05033MA | MA3279-152 |
| Helicoil Wire Threaded-insert M3X0.5-2D | Helicoil Wire Threaded-insert Tanged M3X0.5-2D | M3X0.5 | 2 | 6.0 | 3.80 | 4.35 | 8-7/8 | Metric Coarse | Stainless Steel 304 | TNM-3X.5C-6 | MA3279-202 | 1084-3CN060 | 05034 | 05034MA | MA3279-202 |
| Helicoil Wire Threaded-insert M3X0.5-2.5D | Helicoil Wire Threaded-insert Tanged M3X0.5-2.5D | M3X0.5 | 2.5 | 7.5 | 3.80 | 4.35 | 11-3/8 | Metric Coarse | Stainless Steel 304 | TNM-3X.5C-7.5 | MA3279-252 | 1084-3CN075 | 05035 | 05035MA | MA3279-252 |
| Helicoil Wire Threaded-insert M3X0.5-3D | Helicoil Wire Threaded-insert Tanged M3X0.5-3D | M3X0.5 | 3 | 9.0 | 3.80 | 4.35 | 13-7/8 | Metric Coarse | Stainless Steel 304 | TNM-3X.5C-9 | MA3279-302 | 1084-3CN090 | 05036 | 05036MA | MA3279-302 |
| Helicoil Wire Threaded-insert M3.5X0.6-1D | Helicoil Wire Threaded-insert Tanged M3.5X0.6-1D | M3.5X0.6 | 1 | 3.5 | 4.40 | 4.95 | 3-3/4 | Metric Coarse | Stainless Steel 304 | TNM-3.5X.6C-3.5 | MA3279-103 | 1084-3.5CN035 | 05352 | 05352MA | MA3279-103 |
| Helicoil Wire Threaded-insert M3.5X0.6-1.5D | Helicoil Wire Threaded-insert Tanged M3.5X0.6-1.5D | M3.5X0.6 | 1.5 | 5.3 | 4.40 | 4.95 | 6-3/8 | Metric Coarse | Stainless Steel 304 | TNM-3.5X.6C-5.3 | MA3279-153 | 1084-3.5CN053 | 05353 | 05353MA | MA3279-153 |
| Helicoil Wire Threaded-insert M3.5X0.6-2D | Helicoil Wire Threaded-insert Tanged M3.5X0.6-2D | M3.5X0.6 | 2 | 7.0 | 4.40 | 4.95 | 8-3/4 | Metric Coarse | Stainless Steel 304 | TNM-3.5X.6C-7 | MA3279-203 | 1084-3.5CN070 | 05354 | 05354MA | MA3279-203 |
| Helicoil Wire Threaded-insert M3.5X0.6-2.5D | Helicoil Wire Threaded-insert Tanged M3.5X0.6-2.5D | M3.5X0.6 | 2.5 | 8.8 | 4.40 | 4.95 | 11-3/8 | Metric Coarse | Stainless Steel 304 | TNM-3.5X.6C-8.8 | MA3279-253 | 1084-3.5CN088 | 05355 | 05355MA | MA3279-253 |
| Helicoil Wire Threaded-insert M3.5X0.6-3D | Helicoil Wire Threaded-insert Tanged M3.5X0.6-3D | M3.5X0.6 | 3 | 10.5 | 4.40 | 4.95 | 13-3/4 | Metric Coarse | Stainless Steel 304 | TNM-3.5X.6C-10.5 | MA3279-303 | 1084-3.5CN105 | 05356 | 05356MA | MA3279-303 |
| Helicoil Wire Threaded-insert M4X0.7-1D | Helicoil Wire Threaded-insert Tanged M4X0.7-1D | M4X0.7 | 1 | 4.0 | 5.05 | 5.60 | 3-5/8 | Metric Coarse | Stainless Steel 304 | TNM-4X.7C-4 | MA3279-104 | 1084-4CN040 | 05042 | 05042MA | MA3279-104 |
| Helicoil Wire Threaded-insert M4X0.7-1.5D | Helicoil Wire Threaded-insert Tanged M4X0.7-1.5D | M4X0.7 | 1.5 | 6.0 | 5.05 | 5.60 | 6-1/8 | Metric Coarse | Stainless Steel 304 | TNM-4X.7C-6 | MA3279-154 | 1084-4CN060 | 05043 | 05043MA | MA3279-154 |
| Helicoil Wire Threaded-insert M4X0.7-2D | Helicoil Wire Threaded-insert Tanged M4X0.7-2D | M4X0.7 | 2 | 8.0 | 5.05 | 5.60 | 8-5/8 | Metric Coarse | Stainless Steel 304 | TNM-4X.7C-8 | MA3279-204 | 1084-4CN080 | 05044 | 05044MA | MA3279-204 |
| Helicoil Wire Threaded-insert M4X0.7-2.5D | Helicoil Wire Threaded-insert Tanged M4X0.7-2.5D | M4X0.7 | 2.5 | 10.0 | 5.05 | 5.60 | 11-1/8 | Metric Coarse | Stainless Steel 304 | TNM-4X.7C-10 | MA3279-254 | 1084-4CN100 | 05045 | 05045MA | MA3279-254 |
| Helicoil Wire Threaded-insert M4X0.7-3D | Helicoil Wire Threaded-insert Tanged M4X0.7-3D | M4X0.7 | 3 | 12.0 | 5.05 | 5.60 | 13-5/8 | Metric Coarse | Stainless Steel 304 | TNM-4X.7C-12 | MA3279-304 | 1084-4CN120 | 05046 | 05046MA | MA3279-304 |
| Helicoil Wire Threaded-insert M5X0.8-1D | Helicoil Wire Threaded-insert Tanged M5X0.8-1D | M5X0.8 | 1 | 5.0 | 6.20 | 6.80 | 4-1/8 | Metric Coarse | Stainless Steel 304 | TNM-5X.8C-5 | MA3279-105 | 1084-5CN050 | 05052 | 05052MA | MA3279-105 |
| Helicoil Wire Threaded-insert M5X0.8-1.5D | Helicoil Wire Threaded-insert Tanged M5X0.8-1.5D | M5X0.8 | 1.5 | 7.5 | 6.20 | 6.80 | 6-7/8 | Metric Coarse | Stainless Steel 304 | TNM-5X.8C-7.5 | MA3279-155 | 1084-5CN075 | 05053 | 05053MA | MA3279-155 |
| Helicoil Wire Threaded-insert M5X0.8-2D | Helicoil Wire Threaded-insert Tanged M5X0.8-2D | M5X0.8 | 2 | 10.0 | 6.20 | 6.80 | 9-5/8 | Metric Coarse | Stainless Steel 304 | TNM-5X.8C-10 | MA3279-205 | 1084-5CN100 | 05054 | 05054MA | MA3279-205 |
| Helicoil Wire Threaded-insert M5X0.8-2.5D | Helicoil Wire Threaded-insert Tanged M5X0.8-2.5D | M5X0.8 | 2.5 | 12.5 | 6.20 | 6.80 | 12-3/8 | Metric Coarse | Stainless Steel 304 | TNM-5X.8C-12.5 | MA3279-255 | 1084-5CN125 | 05055 | 05055MA | MA3279-255 |
| Helicoil Wire Threaded-insert M5X0.8-3D | Helicoil Wire Threaded-insert Tanged M5X0.8-3D | M5X0.8 | 3 | 15.0 | 6.20 | 6.80 | 15-1/8 | Metric Coarse | Stainless Steel 304 | TNM-5X.8C-15 | MA3279-305 | 1084-5CN150 | 05056 | 05056MA | MA3279-305 |
| Helicoil Wire Threaded-insert M6X1-1D | Helicoil Wire Threaded-insert Tanged M6X1-1D | M6X1 | 1 | 6.0 | 7.40 | 7.95 | 4 | Metric Coarse | Stainless Steel 304 | TNM-6X1C-6 | MA3279-106 | 1084-6CN060 | 05062 | 05062MA | MA3279-106 |
| Helicoil Wire Threaded-insert M6X1-1.5D | Helicoil Wire Threaded-insert Tanged M6X1-1.5D | M6X1 | 1.5 | 9.0 | 7.40 | 7.95 | 6-3/4 | Metric Coarse | Stainless Steel 304 | TNM-6X1C-9 | MA3279-156 | 1084-6CN090 | 05063 | 05063MA | MA3279-156 |
| Helicoil Wire Threaded-insert M6X1-2D | Helicoil Wire Threaded-insert Tanged M6X1-2D | M6X1 | 2 | 12.0 | 7.40 | 7.95 | 9-1/2 | Metric Coarse | Stainless Steel 304 | TNM-6X1C-12 | MA3279-206 | 1084-6CN120 | 05064 | 05064MA | MA3279-206 |
| Helicoil Wire Threaded-insert M6X1-2.5D | Helicoil Wire Threaded-insert Tanged M6X1-2.5D | M6X1 | 2.5 | 15.0 | 7.40 | 7.95 | 12-1/8 | Metric Coarse | Stainless Steel 304 | TNM-6X1C-15 | MA3279-256 | 1084-6CN150 | 05065 | 05065MA | MA3279-256 |
| Helicoil Wire Threaded-insert M6X1-3D | Helicoil Wire Threaded-insert Tanged M6X1-3D | M6X1 | 3 | 18.0 | 7.40 | 7.95 | 14-7/8 | Metric Coarse | Stainless Steel 304 | TNM-6X1C-18 | MA3279-306 | 1084-6CN180 | 05066 | 05066MA | MA3279-306 |
| Helicoil Wire Threaded-insert M7X1-1D | Helicoil Wire Threaded-insert Tanged M7X1-1D | M7X1 | 1 | 7.0 | 8.65 | 9.20 | 4-7/8 | Metric Coarse | Stainless Steel 304 | TNM-7X1C-7 | MA3279-107 | 1084-7CN070 | 05072 | 05072MA | MA3279-107 |
| Helicoil Wire Threaded-insert M7X1-1.5D | Helicoil Wire Threaded-insert Tanged M7X1-1.5D | M7X1 | 1.5 | 10.5 | 8.65 | 9.20 | 8 | Metric Coarse | Stainless Steel 304 | TNM-7X1C-10.5 | MA3279-157 | 1084-7CN105 | 05073 | 05073MA | MA3279-157 |
| Helicoil Wire Threaded-insert M7X1-2D | Helicoil Wire Threaded-insert Tanged M7X1-2D | M7X1 | 2 | 14.0 | 8.65 | 9.20 | 11-1/8 | Metric Coarse | Stainless Steel 304 | TNM-7X1C-14 | MA3279-207 | 1084-7CN140 | 05074 | 05074MA | MA3279-207 |
| Helicoil Wire Threaded-insert M7X1-2.5D | Helicoil Wire Threaded-insert Tanged M7X1-2.5D | M7X1 | 2.5 | 17.5 | 8.65 | 9.20 | 14-1/8 | Metric Coarse | Stainless Steel 304 | TNM-7X1C-17.5 | MA3279-257 | 1084-7CN175 | 05075 | 05075MA | MA3279-257 |
| Helicoil Wire Threaded-insert M7X1-3D | Helicoil Wire Threaded-insert Tanged M7X1-3D | M7X1 | 3 | 21.0 | 8.65 | 9.20 | 17-1/4 | Metric Coarse | Stainless Steel 304 | TNM-7X1C-21 | MA3279-307 | 1084-7CN210 | 05076 | 05076MA | MA3279-307 |
| Helicoil Wire Threaded-insert M8X1.25-1D | Helicoil Wire Threaded-insert Tanged M8X1.25-1D | M8X1.25 | 1 | 8.0 | 9.80 | 10.35 | 4-1/2 | Metric Coarse | Stainless Steel 304 | TNM-8X1.25C-8 | MA3279-109 | 1084-8CN080 | 05082 | – | MA3279-109 |
| Helicoil Wire Threaded-insert M8X1.25-1.5D | Helicoil Wire Threaded-insert Tanged M8X1.25-1.5D | M8X1.25 | 1.5 | 12.0 | 9.80 | 10.35 | 7-3/8 | Metric Coarse | Stainless Steel 304 | TNM-8X1.25C-12 | MA3279-159 | 1084-8CN120 | 05083 | – | MA3279-159 |
| Helicoil Wire Threaded-insert M8X1.25-2D | Helicoil Wire Threaded-insert Tanged M8X1.25-2D | M8X1.25 | 2 | 16.0 | 9.80 | 10.35 | 10-1/4 | Metric Coarse | Stainless Steel 304 | TNM-8X1.25C-16 | MA3279-209 | 1084-8CN160 | 05084 | – | MA3279-208 |
| Helicoil Wire Threaded-insert M8X1.25-2.5D | Helicoil Wire Threaded-insert Tanged M8X1.25-2.5D | M8X1.25 | 2.5 | 20.0 | 9.80 | 10.35 | 13-1/4 | Metric Coarse | Stainless Steel 304 | TNM-8X1.25C-20 | MA3279-259 | 1084-8CN200 | 05085 | – | MA3279-258 |
| Helicoil Wire Threaded-insert M8X1.25-3D | Helicoil Wire Threaded-insert Tanged M8X1.25-3D | M8X1.25 | 3 | 24.0 | 9.80 | 10.35 | 16-1/8 | Metric Coarse | Stainless Steel 304 | TNM-8X1.25C-24 | MA3279-309 | 1084-8CN240 | 05086 | – | MA3279-308 |
| Helicoil Wire Threaded-insert M10X1.5-1D | Helicoil Wire Threaded-insert Tanged M10X1.5-1D | M10X1.5 | 1 | 10.0 | 11.95 | 12.50 | 4-7/8 | Metric Coarse | Stainless Steel 304 | TNM-10X1.5C-10 | MA3279-111 | 1084-10CN100 | 05102 | – | MA3279-111 |
| Helicoil Wire Threaded-insert M10X1.5-1.5D | Helicoil Wire Threaded-insert Tanged M10X1.5-1.5D | M10X1.5 | 1.5 | 15.0 | 11.95 | 12.50 | 8 | Metric Coarse | Stainless Steel 304 | TNM-10X1.5C-15 | MA3279-161 | 1084-10CN150 | 05103 | – | MA3279-161 |
| Helicoil Wire Threaded-insert M10X1.5-2D | Helicoil Wire Threaded-insert Tanged M10X1.5-2D | M10X1.5 | 2 | 20.0 | 11.95 | 12.50 | 11-1/8 | Metric Coarse | Stainless Steel 304 | TNM-10X1.5C-20 | MA3279-211 | 1084-10CN200 | 05104 | – | MA3279-211 |
| Helicoil Wire Threaded-insert M10X1.5-2.5D | Helicoil Wire Threaded-insert Tanged M10X1.5-2.5D | M10X1.5 | 2.5 | 25.0 | 11.95 | 12.50 | 14-1/4 | Metric Coarse | Stainless Steel 304 | TNM-10X1.5C-25 | MA3279-261 | 1084-10CN250 | 05105 | – | MA3279-261 |
| Helicoil Wire Threaded-insert M10X1.5-3D | Helicoil Wire Threaded-insert Tanged M10X1.5-3D | M10X1.5 | 3 | 30.0 | 11.95 | 12.50 | 17-3/8 | Metric Coarse | Stainless Steel 304 | TNM-10X1.5C-30 | MA3279-311 | 1084-10CN300 | 05106 | – | MA3279-311 |
| Helicoil Wire Threaded-insert M12X1.75-1D | Helicoil Wire Threaded-insert Tanged M12X1.75-1D | M12X1.75 | 1 | 12.0 | 14.30 | 15.00 | 5 | Metric Coarse | Stainless Steel 304 | TNM-12X1.75C-12 | MA3279-114 | 1084-12CN120 | 05122 | – | MA3279-114 |
| Helicoil Wire Threaded-insert M12X1.75-1.5D | Helicoil Wire Threaded-insert Tanged M12X1.75-1.5D | M12X1.75 | 1.5 | 18.0 | 14.30 | 15.00 | 8-1/4 | Metric Coarse | Stainless Steel 304 | TNM-12X1.75C-18 | MA3279-164 | 1084-12CN180 | 05123 | – | MA3279-164 |
| Helicoil Wire Threaded-insert M12X1.75-2D | Helicoil Wire Threaded-insert Tanged M12X1.75-2D | M12X1.75 | 2 | 24.0 | 14.30 | 15.00 | 11-1/2 | Metric Coarse | Stainless Steel 304 | TNM-12X1.75C-24 | MA3279-214 | 1084-12CN240 | 05124 | – | MA3279-214 |
| Helicoil Wire Threaded-insert M12X1.75-2.5D | Helicoil Wire Threaded-insert Tanged M12X1.75-2.5D | M12X1.75 | 2.5 | 30.0 | 14.30 | 15.00 | 14-5/8 | Metric Coarse | Stainless Steel 304 | TNM-12X1.75C-30 | MA3279-264 | 1084-12CN300 | 05125 | – | MA3279-264 |
| Helicoil Wire Threaded-insert M12X1.75-3D | Helicoil Wire Threaded-insert Tanged M12X1.75-3D | M12X1.75 | 3 | 36.0 | 14.30 | 15.00 | 17-7/8 | Metric Coarse | Stainless Steel 304 | TNM-12X1.75C-36 | MA3279-314 | 1084-12CN360 | 05126 | – | MA3279-314 |
| Helicoil Wire Threaded-insert M14X2-1D | Helicoil Wire Threaded-insert Tanged M14X2-1D | M14X2 | 1 | 14.0 | 16.65 | 17.35 | 5-1/8 | Metric Coarse | Stainless Steel 304 | TNM-14X2C-14 | MA3279-116 | 1084-14CN140 | 05142 | – | MA3279-116 |
| Helicoil Wire Threaded-insert M14X2-1.5D | Helicoil Wire Threaded-insert Tanged M14X2-1.5D | M14X2 | 1.5 | 21.0 | 16.65 | 17.35 | 8-1/2 | Metric Coarse | Stainless Steel 304 | TNM-14X2C-21 | MA3279-166 | 1084-14CN210 | 05143 | – | MA3279-166 |
| Helicoil Wire Threaded-insert M14X2-2D | Helicoil Wire Threaded-insert Tanged M14X2-2D | M14X2 | 2 | 28.0 | 16.65 | 17.35 | 11-3/4 | Metric Coarse | Stainless Steel 304 | TNM-14X2C-28 | MA3279-216 | 1084-14CN280 | 05144 | – | MA3279-216 |
| Helicoil Wire Threaded-insert M14X2-2.5D | Helicoil Wire Threaded-insert Tanged M14X2-2.5D | M14X2 | 2.5 | 35.0 | 16.65 | 17.35 | 15 | Metric Coarse | Stainless Steel 304 | TNM-14X2C-35 | MA3279-266 | 1084-14CN350 | 05145 | – | MA3279-266 |
| Helicoil Wire Threaded-insert M14X2-3D | Helicoil Wire Threaded-insert Tanged M14X2-3D | M14X2 | 3 | 42.0 | 16.65 | 17.35 | 18-3/8 | Metric Coarse | Stainless Steel 304 | TNM-14X2C-42 | MA3279-316 | 1084-14CN420 | 05146 | – | MA3279-316 |
| Helicoil Wire Threaded-insert M16X2-1D | Helicoil Wire Threaded-insert Tanged M16X2-1D | M16X2 | 1 | 16.0 | 18.90 | 19.60 | 6-1/8 | Metric Coarse | Stainless Steel 304 | TNM-16X2C-16 | MA3279-118 | 1084-16CN160 | 05162 | – | MA3279-118 |
| Helicoil Wire Threaded-insert M16X2-1.5D | Helicoil Wire Threaded-insert Tanged M16X2-1.5D | M16X2 | 1.5 | 24.0 | 18.90 | 19.60 | 9-3/4 | Metric Coarse | Stainless Steel 304 | TNM-16X2C-24 | MA3279-168 | 1084-16CN240 | 05163 | – | MA3279-168 |
| Helicoil Wire Threaded-insert M16X2-2D | Helicoil Wire Threaded-insert Tanged M16X2-2D | M16X2 | 2 | 32.0 | 18.90 | 19.60 | 13-1/2 | Metric Coarse | Stainless Steel 304 | TNM-16X2C-32 | MA3279-218 | 1084-16CN320 | 05164 | – | MA3279-218 |
| Helicoil Wire Threaded-insert M16X2-2.5D | Helicoil Wire Threaded-insert Tanged M16X2-2.5D | M16X2 | 2.5 | 40.0 | 18.90 | 19.60 | 17-1/4 | Metric Coarse | Stainless Steel 304 | TNM-16X2C-40 | MA3279-268 | 1084-16CN400 | 05165 | – | MA3279-268 |
| Helicoil Wire Threaded-insert M16X2-3D | Helicoil Wire Threaded-insert Tanged M16X2-3D | M16X2 | 3 | 48.0 | 18.90 | 19.60 | 21 | Metric Coarse | Stainless Steel 304 | TNM-16X2C-48 | MA3279-318 | 1084-16CN480 | 05166 | – | MA3279-318 |
| Helicoil Wire Threaded-insert M18X2.5-1D | Helicoil Wire Threaded-insert Tanged M18X2.5-1D | M18X2.5 | 1 | 18.0 | 21.30 | 22.00 | 5-3/8 | Metric Coarse | Stainless Steel 304 | TNM-18X2.5C-18 | MA3279-121 | 1084-18CN180 | 05182 | – | MA3279-121 |
| Helicoil Wire Threaded-insert M18X2.5-1.5D | Helicoil Wire Threaded-insert Tanged M18X2.5-1.5D | M18X2.5 | 1.5 | 27.0 | 21.30 | 22.00 | 8-7/8 | Metric Coarse | Stainless Steel 304 | TNM-18X2.5C-27 | MA3279-171 | 1084-18CN270 | 05183 | – | MA3279-171 |
| Helicoil Wire Threaded-insert M18X2.5-2D | Helicoil Wire Threaded-insert Tanged M18X2.5-2D | M18X2.5 | 2 | 36.0 | 21.30 | 22.00 | 12-1/4 | Metric Coarse | Stainless Steel 304 | TNM-18X2.5C-36 | MA3279-221 | 1084-18CN360 | 05184 | – | MA3279-221 |
| Helicoil Wire Threaded-insert M18X2.5-2.5D | Helicoil Wire Threaded-insert Tanged M18X2.5-2.5D | M18X2.5 | 2.5 | 45.0 | 21.30 | 22.00 | 15-5/8 | Metric Coarse | Stainless Steel 304 | TNM-18X2.5C-45 | MA3279-271 | 1084-18CN450 | 05185 | – | MA3279-271 |
| Helicoil Wire Threaded-insert M18X2.5-3D | Helicoil Wire Threaded-insert Tanged M18X2.5-3D | M18X2.5 | 3 | 54.0 | 21.30 | 22.00 | 19 | Metric Coarse | Stainless Steel 304 | TNM-18X2.5C-54 | MA3279-321 | 1084-18CN540 | 05186 | – | MA3279-321 |
| Helicoil Wire Threaded-insert M20X2.5-1D | Helicoil Wire Threaded-insert Tanged M20X2.5-1D | M20X2.5 | 1 | 20.0 | 23.55 | 24.40 | 6-1/8 | Metric Coarse | Stainless Steel 304 | TNM-20X2.5C-20 | MA3279-124 | 1084-20CN200 | 05202 | – | MA3279-124 |
| Helicoil Wire Threaded-insert M20X2.5-1.5D | Helicoil Wire Threaded-insert Tanged M20X2.5-1.5D | M20X2.5 | 1.5 | 30.0 | 23.55 | 24.40 | 9-7/8 | Metric Coarse | Stainless Steel 304 | TNM-20X2.5C-30 | MA3279-174 | 1084-20CN300 | 05203 | – | MA3279-174 |
| Helicoil Wire Threaded-insert M20X2.5-2D | Helicoil Wire Threaded-insert Tanged M20X2.5-2D | M20X2.5 | 2 | 40.0 | 23.55 | 24.40 | 13-5/8 | Metric Coarse | Stainless Steel 304 | TNM-20X2.5C-40 | MA3279-224 | 1084-20CN400 | 05204 | – | MA3279-224 |
| Helicoil Wire Threaded-insert M20X2.5-2.5D | Helicoil Wire Threaded-insert Tanged M20X2.5-2.5D | M20X2.5 | 2.5 | 50.0 | 23.55 | 24.40 | 17-3/8 | Metric Coarse | Stainless Steel 304 | TNM-20X2.5C-50 | MA3279-274 | 1084-20CN500 | 05205 | – | MA3279-274 |
| Helicoil Wire Threaded-insert M20X2.5-3D | Helicoil Wire Threaded-insert Tanged M20X2.5-3D | M20X2.5 | 3 | 60.0 | 23.55 | 24.40 | 21-1/8 | Metric Coarse | Stainless Steel 304 | TNM-20X2.5C-60 | MA3279-324 | 1084-20CN600 | 05206 | – | MA3279-324 |
| Helicoil Wire Threaded-insert M22X2.5-1D | Helicoil Wire Threaded-insert Tanged M22X2.5-1D | M22X2.5 | 1 | 22.0 | 25.90 | 26.90 | 6-3/4 | Metric Coarse | Stainless Steel 304 | TNM-22X2.5C-22 | MA3279-127 | 1084-22CN220 | 05222 | – | MA3279-127 |
| Helicoil Wire Threaded-insert M22X2.5-1.5D | Helicoil Wire Threaded-insert Tanged M22X2.5-1.5D | M22X2.5 | 1.5 | 33.0 | 25.90 | 26.90 | 10-7/8 | Metric Coarse | Stainless Steel 304 | TNM-22X2.5C-33 | MA3279-177 | 1084-22CN330 | 05223 | – | MA3279-177 |
| Helicoil Wire Threaded-insert M22X2.5-2D | Helicoil Wire Threaded-insert Tanged M22X2.5-2D | M22X2.5 | 2 | 44.0 | 25.90 | 26.90 | 14-7/8 | Metric Coarse | Stainless Steel 304 | TNM-22X2.5C-44 | MA3279-227 | 1084-22CN440 | 05224 | – | MA3279-227 |
| Helicoil Wire Threaded-insert M22X2.5-2.5D | Helicoil Wire Threaded-insert Tanged M22X2.5-2.5D | M22X2.5 | 2.5 | 55.0 | 25.90 | 26.90 | 19 | Metric Coarse | Stainless Steel 304 | TNM-22X2.5C-55 | MA3279-277 | 1084-22CN550 | 05225 | – | MA3279-277 |
| Helicoil Wire Threaded-insert M22X2.5-3D | Helicoil Wire Threaded-insert Tanged M22X2.5-3D | M22X2.5 | 3 | 66.0 | 25.90 | 26.90 | 23-1/8 | Metric Coarse | Stainless Steel 304 | TNM-22X2.5C-66 | MA3279-327 | 1084-22CN660 | 05226 | – | MA3279-327 |
| Helicoil Wire Threaded-insert M24X3-1D | Helicoil Wire Threaded-insert Tanged M24X3-1D | M24X3 | 1 | 24.0 | 28.00 | 29.00 | 6-1/8 | Metric Coarse | Stainless Steel 304 | TNM-24X3C-24 | MA3279-129 | 1084-24CN240 | 05242 | – | MA3279-129 |
| Helicoil Wire Threaded-insert M24X3-1.5D | Helicoil Wire Threaded-insert Tanged M24X3-1.5D | M24X3 | 1.5 | 36.0 | 28.00 | 29.00 | 10 | Metric Coarse | Stainless Steel 304 | TNM-24X3C-36 | MA3279-179 | 1084-24CN360 | 05243 | – | MA3279-179 |
| Helicoil Wire Threaded-insert M24X3-2D | Helicoil Wire Threaded-insert Tanged M24X3-2D | M24X3 | 2 | 48.0 | 28.00 | 29.00 | 13-3/4 | Metric Coarse | Stainless Steel 304 | TNM-24X3C-48 | MA3279-229 | 1084-24CN480 | 05244 | – | MA3279-229 |
| Helicoil Wire Threaded-insert M24X3-2.5D | Helicoil Wire Threaded-insert Tanged M24X3-2.5D | M24X3 | 2.5 | 60.0 | 28.00 | 29.00 | 17-1/2 | Metric Coarse | Stainless Steel 304 | TNM-24X3C-60 | MA3279-279 | 1084-24CN600 | 05245 | – | MA3279-279 |
| Helicoil Wire Threaded-insert M24X3-3D | Helicoil Wire Threaded-insert Tanged M24X3-3D | M24X3 | 3 | 72.0 | 28.00 | 29.00 | 21-3/8 | Metric Coarse | Stainless Steel 304 | TNM-24X3C-72 | MA3279-329 | 1084-24CN720 | 05246 | – | MA3279-329 |
| Helicoil Wire Threaded-insert M27X3-1D | Helicoil Wire Threaded-insert Tanged M27X3-1D | M27X3 | 1 | 27.0 | 31.40 | 32.40 | 7 | Metric Coarse | Stainless Steel 304 | TNM-27X3C-27 | MA3279-131 | 1084-27CN270 | 05272 | – | MA3279-131 |
| Helicoil Wire Threaded-insert M27X3-1.5D | Helicoil Wire Threaded-insert Tanged M27X3-1.5D | M27X3 | 1.5 | 40.5 | 31.40 | 32.40 | 11-1/4 | Metric Coarse | Stainless Steel 304 | TNM-27X3C-40.5 | MA3279-181 | 1084-27CN405 | 05273 | – | MA3279-161 |
| Helicoil Wire Threaded-insert M27X3-2D | Helicoil Wire Threaded-insert Tanged M27X3-2D | M27X3 | 2 | 54.0 | 31.40 | 32.40 | 15-1/2 | Metric Coarse | Stainless Steel 304 | TNM-27X3C-54 | MA3279-231 | 1084-27CN540 | 05274 | – | MA3279-231 |
| Helicoil Wire Threaded-insert M27X3-2.5D | Helicoil Wire Threaded-insert Tanged M27X3-2.5D | M27X3 | 2.5 | 67.5 | 31.40 | 32.40 | 19-3/4 | Metric Coarse | Stainless Steel 304 | TNM-27X3C-67.5 | MA3279-281 | 1084-27CN675 | 05275 | – | MA3279-281 |
| Helicoil Wire Threaded-insert M27X3-3D | Helicoil Wire Threaded-insert Tanged M27X3-3D | M27X3 | 3 | 81.0 | 31.40 | 32.40 | 24 | Metric Coarse | Stainless Steel 304 | TNM-27X3C-81 | MA3279-331 | 1084-27CN810 | 05276 | – | MA3279-331 |

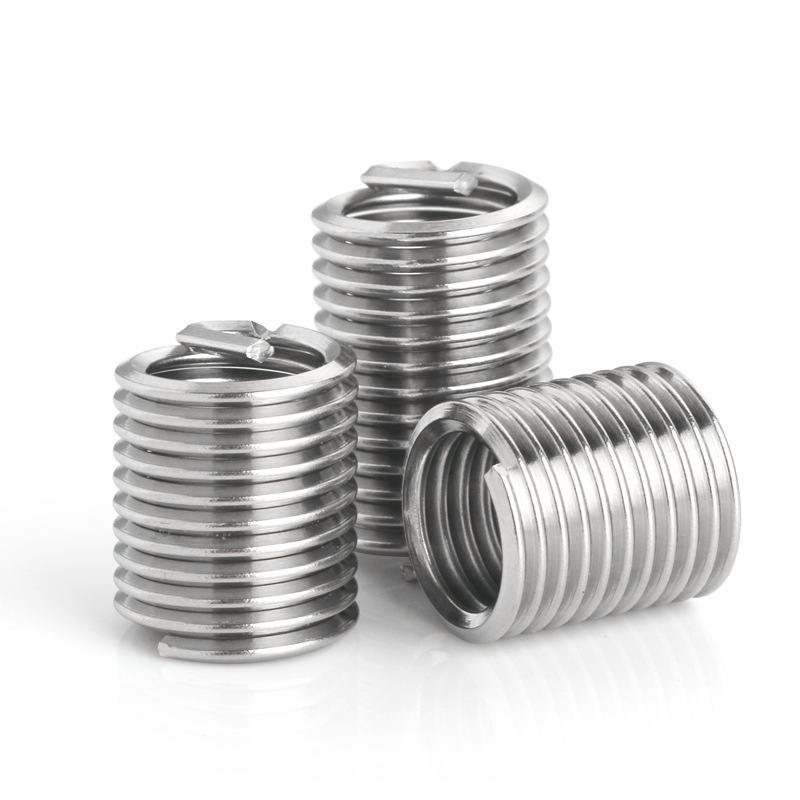

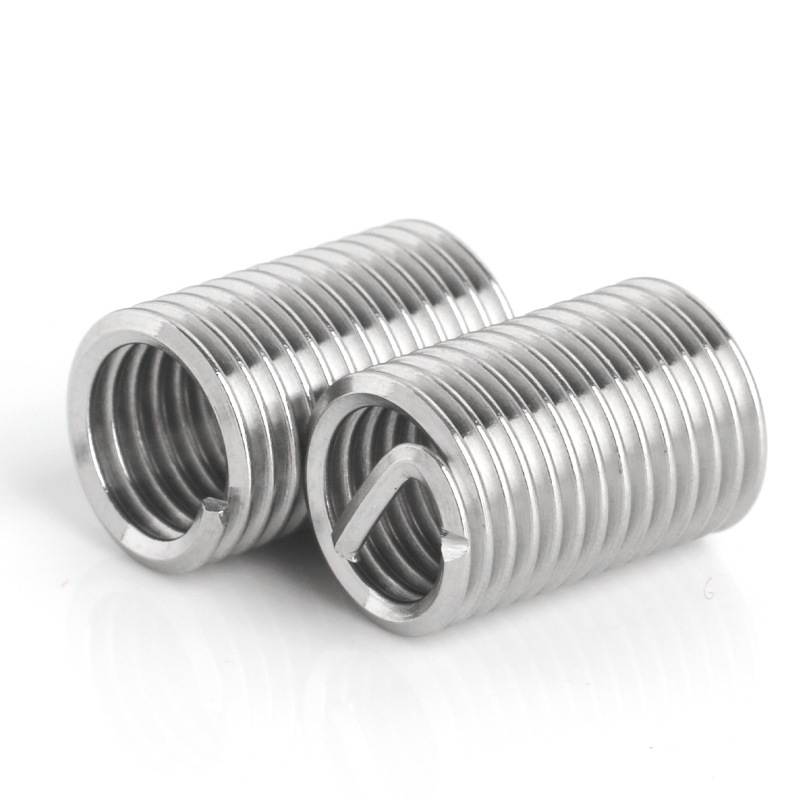

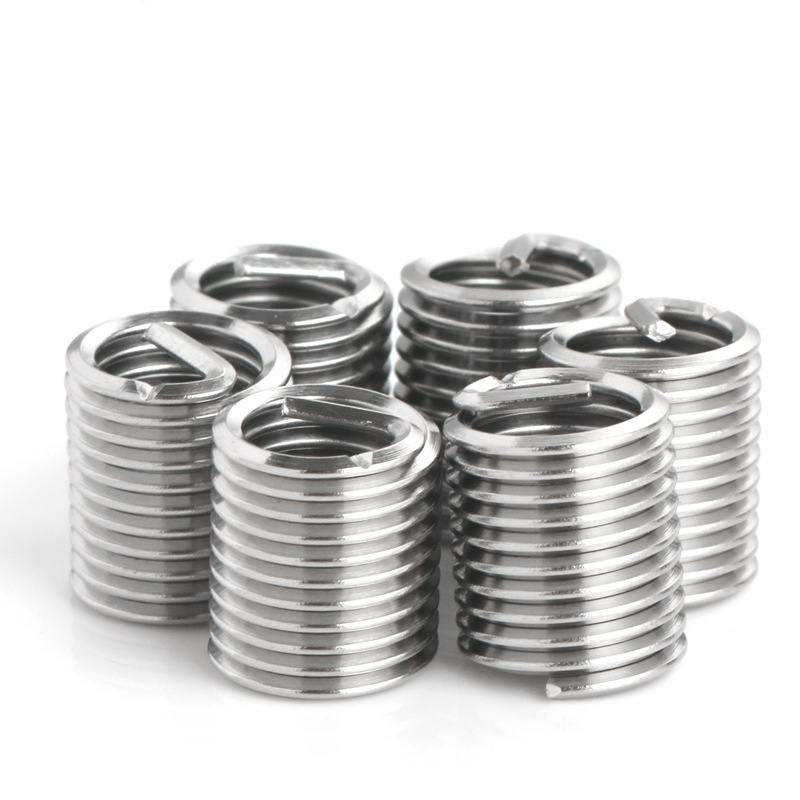

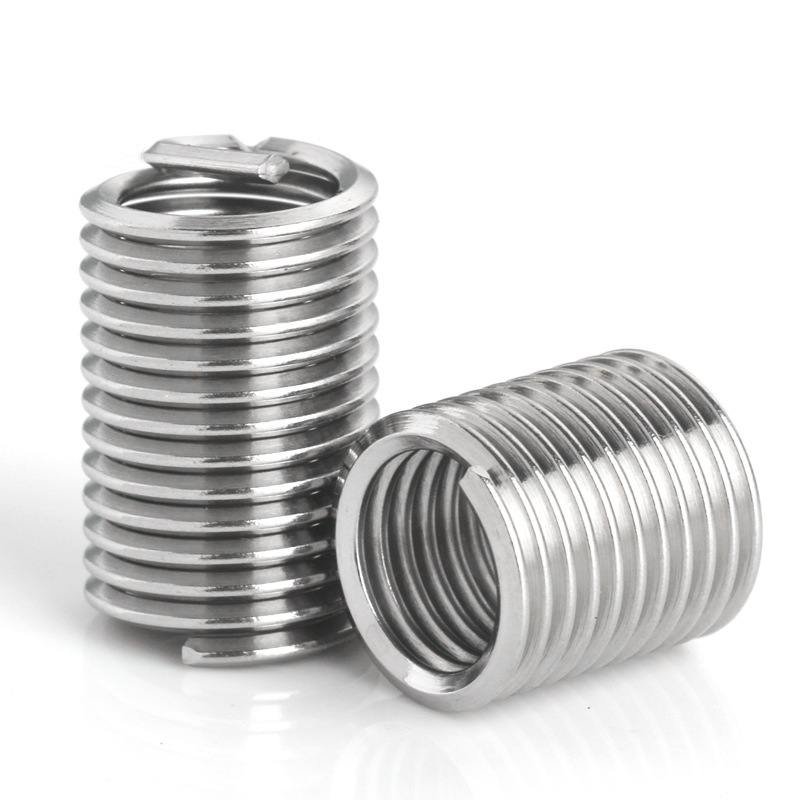

TK Wire Threaded inserts – also known as screw or helical threaded inserts – quickly repair or reinforce tapped holes in soft metals. Made from 18-8 stainless steel wire, inserts provide strong internal threads that are corrosion resistant and withstand temperatures to 800°F.
The wire is formed into a diamond pattern and then wound into a spring. Before being installed, the insert diameter is larger than the tapped hole. The insert diameter is reduced during installation, allowing the insert to thread into the hole. Once properly installed, the radial pressure of the released insert holds the insert firmly in place.
TK wire threaded inserts are available from stock in either free running or screw locking types, which come in five standard lengths and in various pitches and thread types, including metric, UNF, UNC, and British Standard.
Materials and Coatings
304 Stainless Steel (standard)
Phosphor Bronze
Inconel X-750
Nitronic 60®
Platings and Coatings
Dry Film Lubricant
Cadmium
Silver
Electroless Nickel
Color Identifier
Xylan
We offer a range of materials, finishes, and coatings of inserts, and can also manufacture inserts in special lengths and pitches upon customer request.
Helical Wire inserts are precision manufactured to provide permanent, wear-resistant screw threads that exceed the strength of most parent materials. Inserts are available in non-locking (free running) and self-locking varieties. Special sizes are available to meet your exact specifications and insert needs.
- Comply with AS7245 and NASM-8846 for the Standard series and MA1565 for the metric series.
- Meet or exceed the Military and Aerospace standards
- ISO 9001:2015 certified
Features
Quickly repair damaged threads in soft metal
Protect tapped holes from stripping and wear
Made from corrosion-resistant 18-8 stainless steel
Applications:
Soft metals: aluminum, cast iron, magnesium, etc.
Wire Thread Insert Brand Options
- KATO® Tangless® (trademark owned by Advanex Inc.)
- Helicoil® (trademark owned by Stanley Engineered Fastening)
- Recoil® (trademark owned by Arconic Fastening Systems)
And other Brand alternative solutions will be provided upon request.
